100 Watt BeO AlN Al2O3 9*6mm Flange Termination For Military

  • 1
  • 2

Brand Name : YLT

Model Number : chip

Place of Origin : China

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram, Paypal

Delivery Time : 5-8 work days

MOQ : 100PCS

Supply Ability : 13Million PCS for RF Resistor, 7Million PCS for RF Attenuator

Packaging Details : Inside Box + Outside Carton Plus Pallet or Wooden Case if Necessary

Standard Resistance : 50Ω

Resistance Tolerance : ±5%（default）;±2%;±1%

Frequency : DC-6GHz

Temperature Coefficient : ≤150ppm/℃

VSWR : 1.25

Contact Now

Flange Mount Terminations 100w BeO AlN Al2O3 9 * 6



APPLICATIONS
Mobile Networks
Broadcast
High Power Amplifiers
Isolators
Military
Instrumentation

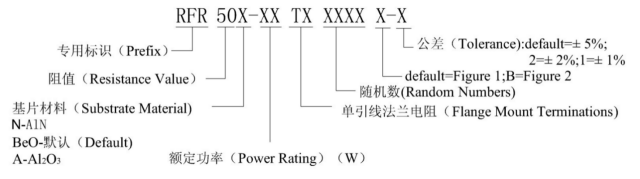

Product Reference)

平均功率

频率范围

Frequency

最大驻波比

VSWR

 尺寸Dimensions(mm) 产品型号
Power Rating Model
(W) (GHz) (Max) W L H I Tw 　
20 DC-10 1.35 5 2.5 5 0.6 N/A RFR50-20TIN0402A
40 DC-3 1.20 6 4.7 3 6 1 RFR50-40TBL0901A
100 DC-6 1.25 6.35 6.35 3.5 6 1 RFR50-100TLS3304A
100 DC-6 1.25 9 6 1 1 N/A RFR50-100TBR1201A
250 DC-3 1.20 10 10 4 6 1.4 RFR50-250TBDT1602A
250 DC-3 1.20 12.7 10 4 6 2.4 RFR50-250TBAB1702B
800 DC-1.1 1.20 25.4 26.4 4.8 8 2.4 RFR50-800TEG3102
1000 DC-6 1.30 20 30 5.1 6 2.4

RFR50-1000TME14801A

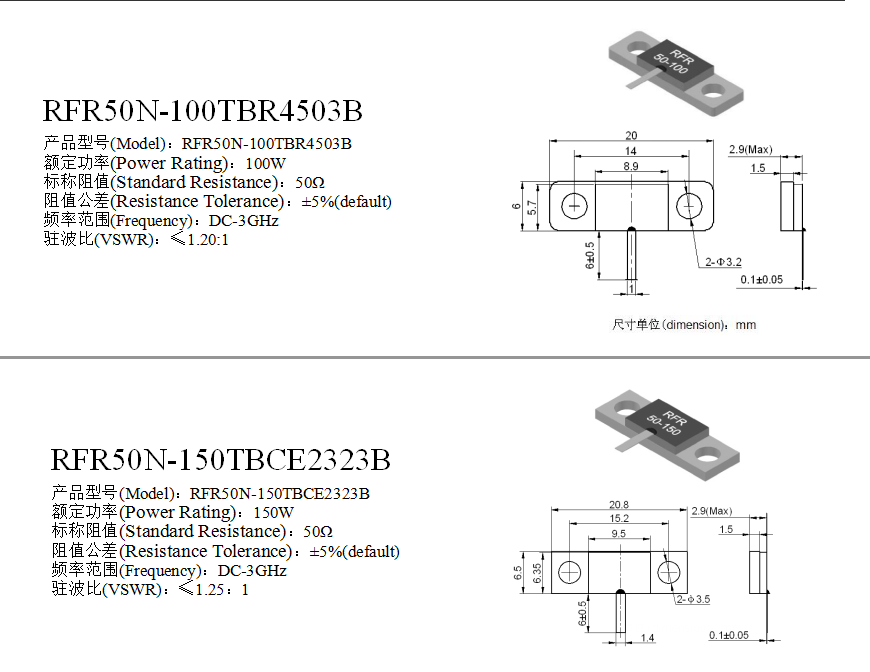

100 Watt BeO AlN Al2O3 9*6mm Flange Termination For Military

100 Watt BeO AlN Al2O3 9*6mm Flange Termination For Military

100 Watt BeO AlN Al2O3 9*6mm Flange Termination For Military
