12w 50 Ohm Termination Resistor 3mm*1.5mm DC-6GHz BeO AlN Al2O3

Product Categories
Shenzhen Yulongtong Electron Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

12w 50 Ohm Termination Resistor 3mm*1.5mm DC-6GHz BeO AlN Al2O3

Brand Name : YLT

Model Number : chip

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram, Paypal

Supply Ability : 13Million PCS for RF Resistor, 7Million PCS for RF Attenuator

Delivery Time : 5-8 work days

Packaging Details : Inside Box + Outside Carton Plus Pallet or Wooden Case if Necessary

Resistance Tolerance : ±5%（default）;±2%;±1%

Power Rating : 12W

Frequency : DC-6GHz

VSWR : 1.25

Dimensions(mm) : 3 * 1.5

Name : 50 Ohm Termination

Contact Now


 Chip Terminations 50Ω 12w DC- 6GHz BeO AlN Al2O3 3 * 1.5



Power Rating Frequency VSWR Dimensions(mm) Model
(W) (GHz) (Max) W L H A B C 　
1 DC-30 1.30 0.5 1 0.25 N/A N/A N/A RFR50N-1CT24801B
3 DC-30 1.50 1.27 2.54 0.6 1.54 0.5 0.6 RFR50-3CT43702F
5 DC-6 1.25 1.27 2.54 0.6 1.54 0.4 0.6 RFR50N-5CT27001B

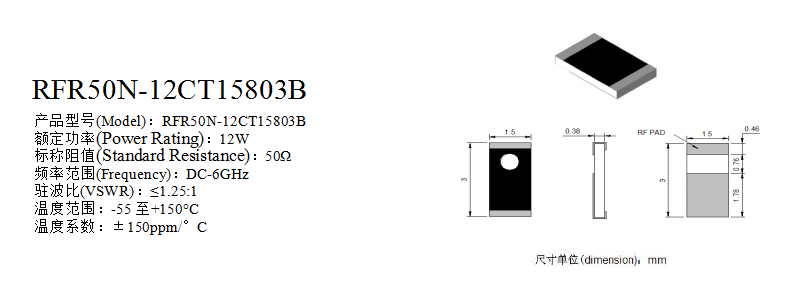

12 DC-6 1.20 1.5 3 0.38 N/A N/A N/A RFR50N-12CT15803B
5 DC-12 1.35 2.5 3 0.6 N/A N/A N/A RFR50-5CT0214B
25 DC-6 1.20 2.5 5 1 N/A N/A N/A RFR50N-25CT0337B
150 DC-4 1.20 6.35 6.35 1.5 1.27 0.76 N/A RFR50N-150CT4803B




  • (Standard Resistance):50Ω
  • (Substrate Material):BeO, AlN,Al2O3
  • (Resistance Tolerance):± 5%(default)；±2%；±1%
  • (Power Rating):5～500W
  • (Temperature Range):-55～+150℃
  • (Temperature Coefficient):≤ 150ppm/℃
  • (RoHS Compliant)

12w 50 Ohm Termination Resistor 3mm*1.5mm DC-6GHz BeO AlN Al2O3

(We can provide the customized product according to the customers’ requirement, such as Resistance and Configuration. )


 12w 50 Ohm Termination Resistor 3mm*1.5mm DC-6GHz BeO AlN Al2O3


12w 50 Ohm Termination Resistor 3mm*1.5mm DC-6GHz BeO AlN Al2O3





Application Of Chip Terminations

  • Broadcast (TV and Radio)
  • High Power Amplifier
  • High Power Filters
  • Instrumentation
  • Isolators
  • Remote Termination
  • Satellite Communication
  • Splitters / Combiners


Chip terminals FAQ
Q1: When can I get the company profile, price and product information?
A4:Usually we offer you with these information within 1 hour after we get your inquiry.
Q5: How could I get a sample?
A5: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all
related shipping costs.Express delivery charge depends on the quantity of the samples.
Q6: What is your payment terms?
A6: For first order,we need deposit,then we can start produce goods for you.
After we have good relation and know each other better, you can pay us before shipment and no need deposit.
