Chip Terminations 50Ω 150w DC- 2.5GHz BeO AlN Al2O3 9.5 * 6.35
- (Standard Resistance):50Ω
- (Substrate Material):BeO, AlN,Al2O3
- (Resistance Tolerance):± 5%(default)；±2%；±1%
- (Power Rating):5～500W
- (Temperature Range):-55～+150℃
- (Temperature Coefficient):≤ 150ppm/℃
- (RoHS Compliant)
(Chip Terminations)
| Power Rating | Frequency | VSWR | Dimensions(mm) | Model |
| (W) | (GHz) | (Max) | W | L | H | A | B | C | |
| 2 | DC-12 | 1.2 | 1.1 | 0.7 | 0.25 | N/A | N/A | N/A | RFR50-2CT49701A |
| 20 | DC-18 | 1.35 | 1.27 | 2.54 | 0.38 | 0.8 | 0.6 | N/A | RFR50-20CT43711A |
| 8 | DC-3 | 1.25 | 1.5 | 3 | 0.38 | N/A | N/A | N/A | RFR50N-8CT15802A |
| 20 | DC1.8-2.2 | 1.20 | 2.2 | 2 | 0.4 | N/A | N/A | N/A | RFR50-20CT21902A |
| 20 | DC-12 | 1.40 | 3 | 2.5 | 0.6 | N/A | N/A | N/A | RFR50-20CT0215A |
| 20 | DC-3 | 1.40 | 4 | 4 | 1 | 0.8 | N/A | N/A | RFR50N-20CT0706A |
| 20 | DC-18 | 1.35 | 5 | 2.5 | 0.6 | 0.9 | 0.5 | N/A | RFR50-20CT0406A |
| 80 | DC-6 | 1.25 | 5 | 5 | 1 | 3 | 0.8 | N/A | RFR50N-80CT5901A |
| 40 | DC-3 | 1.20 | 6 | 4.7 | 1 | 1.4 | 1 | N/A | RFR50-40CT0906A |
| 100 | DC-4 | 1.20 | 6.35 | 6.35 | 1 | 1.4 | 1 | N/A | RFR50-100CT3341A |
| 150 | DC-4 | 1.20 | 6.35 | 9.5 | 1.5 | 1.6 | 1 | N/A | RFR50N-150CT4701A |
| 50 | DC-7.2 | 1.20 | 7 | 3.7 | 1 | 1.2 | 1 | N/A | RFR50-50CT0502A |
| 100 | DC-3 | 1.20 | 8.9 | 5.7 | 1 | 1.5 | 1.1 | N/A | RFR50N-100CT4503A |
| 250 | DC-2.7 | 1.25 | 9.5 | 5.7 | 1 | 2.4 | N/A | N/A | RFR50N-250CT9404A |

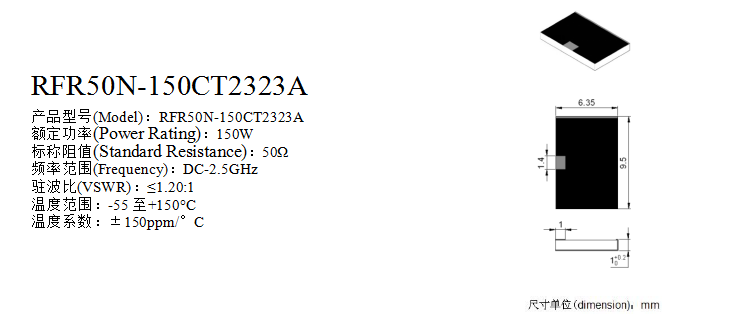

| 150 | DC-2.5 | 1.20 | 9.5 | 6.35 | 1 | 1.4 | 1 | N/A | RFR50N-150CT2323A |
| 250 | DC-3 | 1.20 | 9.5 | 9.5 | 1 | 3 | 1.1 | N/A | RFR50N-250CT2525A |
(We can provide the customized product according to the customers’ requirement, such as Resistance and Configuration. )
Chip terminals FAQ
Q1: Are you a factory or trading company?
-----We are a factory,Our company mainly sells Chip Terminations.....
Q2: Do you accept sample order?
------Yes, we can accept sample order.
Q3: What's your warranty policy?
-----We offer 2 year warranty. For goods defected not by personal seasons, we will replace for it.
Q4:What's the lead time for mass order?
------Normally, it takes about 20-35 days, depends on the order quantity.
