Low VSWR 100Watt DC 4GHz RF Termination 50 Ohm 6.35*6.5mm

Brand Name : YLT

Model Number : chip

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram, Paypal

Supply Ability : 13Million PCS for RF Resistor, 7Million PCS for RF Attenuator

Delivery Time : 5-8 work days

Packaging Details : Inside Box + Outside Carton Plus Pallet or Wooden Case if Necessary

Name : RF Termination

Resistance Tolerance : ±5%（default）;±2%;±1%

Power Rating : 100Watt

Frequency : DC- 4GHz

VSWR : ≤1.20

Feature : Low VSWR

Contact Now

Chip Terminations 50Ω 100w DC- 4GHz BeO AlN Al2O3 6.35 * 6.5

Flange Termination 100watt 50ohm RF Termination Microwave Resistor High Power Dummy Load

Used and refurbished 100% DC Resistance Check Tested

MILITARY/INSTRUMENTATION RESISTIVE COMPONENTS

Features:

• DC – 4.0 GHz

• 100 Watts

• BeO Ceramic

• Non-Nichrome Resistive

Element

• Low VSWR

• 100% Tested

(Chip Terminations)

Power Rating	Frequency	VSWR	Dimensions(mm)						Model
(W)	(GHz)	(Max)	W	L	H	A	B	C
2	DC-12	1.2	1.1	0.7	0.25	N/A	N/A	N/A	RFR50-2CT49701A
20	DC-18	1.35	1.27	2.54	0.38	0.8	0.6	N/A	RFR50-20CT43711A
8	DC-3	1.25	1.5	3	0.38	N/A	N/A	N/A	RFR50N-8CT15802A
20	DC1.8-2.2	1.20	2.2	2	0.4	N/A	N/A	N/A	RFR50-20CT21902A
20	DC-12	1.40	3	2.5	0.6	N/A	N/A	N/A	RFR50-20CT0215A
20	DC-3	1.40	4	4	1	0.8	N/A	N/A	RFR50N-20CT0706A
20	DC-18	1.35	5	2.5	0.6	0.9	0.5	N/A	RFR50-20CT0406A

80	DC-6	1.25	5	5	1	3	0.8	N/A	RFR50N-80CT5901A
40	DC-3	1.20	6	4.7	1	1.4	1	N/A	RFR50-40CT0906A

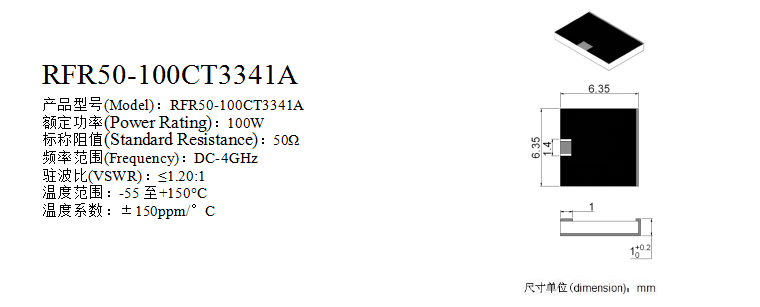

100	DC-4	1.20	6.35	6.35	1	1.4	1	N/A	RFR50-100CT3341A
150	DC-4	1.20	6.35	9.5	1.5	1.6	1	N/A	RFR50N-150CT4701A
50	DC-7.2	1.20	7	3.7	1	1.2	1	N/A	RFR50-50CT0502A
100	DC-3	1.20	8.9	5.7	1	1.5	1.1	N/A	RFR50N-100CT4503A
250	DC-2.7	1.25	9.5	5.7	1	2.4	N/A	N/A	RFR50N-250CT9404A
150	DC-2.5	1.20	9.5	6.35	1	1.4	1	N/A	RFR50N-150CT2323A
250	DC-3	1.20	9.5	9.5	1	3	1.1	N/A	RFR50N-250CT2525A

Low VSWR 100Watt DC 4GHz RF Termination 50 Ohm 6.35*6.5mm

FAQ

Q1: Are you a factory or trading company?

-----We are a factory,Our company mainly sells Chip Terminations.....

Q2: Do you accept sample order?

------Yes, we can accept sample order.

Q3: What's your warranty policy?

-----We offer 2 year warranty. For goods defected not by personal seasons, we will replace for it.

Q4:What's the lead time for mass order?

------Normally, it takes about 20-35 days, depends on the order quantity.
